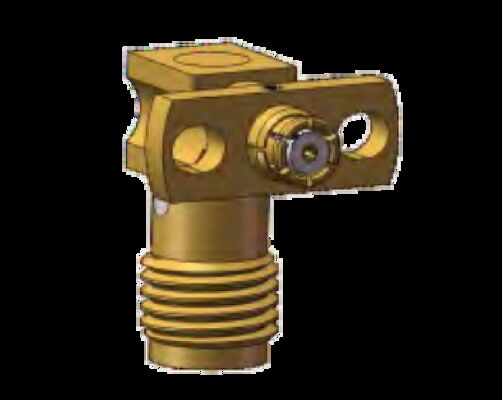

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component
Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component

Gambar besar :  Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: ISO Certificates
Nomor model: SMA/SMP-KWFK7
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: dalam stok
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 10 pcs/tas platik yang lebih besar ； 100 pcs/karton
Waktu pengiriman: 5-15 hari kerja setelah pembayaran
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Adaptor sudut kanan SMA ke SMP perempuan ke perempuan model: SMA/SMP-KWFK7
Rentang frekuensi: 0.3MHz-18GHz Perumahan: Paduan Tembaga, Pelapisan Emas
Kontak: Paduan Tembaga, Palting Emas Isolator: PTFE
Resistensi Isolasi: > 5000MΩ DWV: 500V
Dekatnya: 50Ω Panjang: maks 20.1mm
Suhu: -55℃～+125℃ dalam stok: >300 buah
Menyoroti:

Right Angle SMA to SMP adapter

,

SMA Female to SMP Female connector

,

RF coaxial adapter 0.3MHz-18GHz

Product Description:

The SMA-to-SMP adapter is one of the most commonly used in-series coaxial adapters in the RF and microwave industry. Its core function is to enable reliable interconnection between devices equipped with threaded SMA interfaces and push-on SMP interfaces.
Boasting high-frequency performance, low signal loss, and robust mechanical stability, this adapter is widely deployed across scenarios including laboratory RF test and measurement setups, satellite communication equipment, and radar systems. It is also fully compatible with test instrumentation in the 5G communications and aerospace sectors. Beyond ensuring high-precision connectivity for applications such as board-to-board interconnection, the adapter effectively safeguards the connector interfaces of high-value equipment, thereby enabling seamless, efficient compatibility between devices with disparate interface types.


Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS
Dielectrics Voltage-resistance
500VRMS
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
Normal≤2.5mΩ
Center conductor
Normal≤6mΩ
VSWR
≤1.3


VSWR
DC~18GHz 18GHz~26.5GHz 26.5~40GHz
Straight ≤1.25 ≤1.3 ≤1.4
Right Angle ≤1.3

Adapter ≤1.25 ≤1.3 ≤1.4
Others ≤1.3


The outline demension of SMA to SMP Jack to Jack right angle adapter: SMA/SMP-KWFK7 Up to 18GHz

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component 0





Other similar model SMA to SMP Female to Female right angle adapter:

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component 1

Other model SMA  Female to SMP Male Right Angle Adapter:

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component 2

Applications:

Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component 3

Customization:

Product Customization Services for Different Length SMP Straight Adapter are available:

Brand Name: ELT

MOQ: 200 pcs

Price: Depending on the quantity

Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.


We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler...

Packing and Shipping:

Packaging for SMA to SMP Right Angle Adapter:

1 Piece/ small plastic bag

10 Pieces/ larger plastic bag

100 Pieces/ carton box


The SMA to SMP right angle Adapter comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.

Right Angle SMA Female to SMP Female Adapter Frequency Range 0.3MHz to 18GHz Using Microwave Component 4

For shipping, the SMA to SMP Right Angle Adapter is placed in caron. We will supply the tracking No after shipping.
