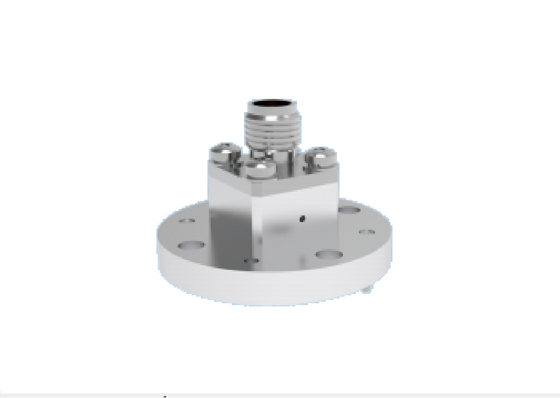

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components

Gambar besar : WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components Harga terbaik

Detail produk:

Tempat asal:	Xi'an, Cina
Nama merek:	ELT
Sertifikasi:	ISO 9001, ISO14001
Nomor model:	BTZH-H2K-1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	MOQ 10 buah
Harga:	Depending on the quantity
Kemasan rincian:	1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman:	8-12 minggu setelah menerima pembayaran
Syarat-syarat pembayaran:	T/T atau LC
Menyediakan kemampuan:	Sebagai Persyaratan

Kontak

Detil Deskripsi produk

Nama Produk:	Adaptor WR22 ke koaksial 2.4mm	Model:	BTZH-H2K-1
Rentang Frekuensi:	23.9GHz-50.1GHz	Konduktor Pusat:	Paduan tembaga, pelapisan emas
Konduktor Luar:	Paduan aluminium, oksidasi konduktif warna alami	Pelabuhan Koaksial:	2.4mm
Struktur:	Akhiri Peluncuran	Metode Pemasangan:	Pemasangan Flange Bulat 4 Lubang
Pelabuhan Pemandu Gelombang:	BJ400/WR22	VSWR:	≤1.25
Kerugian Penyisipan:	≤0,25dB	Berat:	≤16g
Menyoroti:	WR22 waveguide to 2.4mm coaxial adapter , Ka band aerospace waveguide components , 2.92mm RF connector with round flange

Product Description:

Waveguide to 2.4mm mmWave Adapter, End Launch

Elite Electronics manufactures high-performance aerospace-grade waveguide-to-coaxial adapters supplied in two core constructions: end-launch and right-angle configurations. Covering an extensive frequency range from 5.3 GHz to 145 GHz, our rectangular waveguide options span standard BJ / WR specifications: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ1200(WR8).

Available coaxial interfaces include SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm and 0.8 mm series, with every waveguide port rated for full-bandwidth operation across its designated frequency band.

Boasting robust mechanical construction, compact footprint, superior consistent RF performance and low weight below 20 grams, our aerospace waveguide-coax transition adapters are extensively deployed in satellite and spacecraft aerospace applications.

Outline Dimension of waveguide WR22 to 2.4mm connectors, end launch:

Model No.: BTZH-H2K-1

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 0

More waveguide to coaxial connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics and other fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 1

Packing & Shipping

Packaging:

The waveguide WR 22 to coaxial 2.4mm connectors end launch is carefully packaged in carton to ensure its protection during transit.

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 2

Shipping:

We ship the end launch waveguide WR22 to coaxial 2.4mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.

Waveguide Port Comparison

BJ (Chinese Standard)	WR	Frequency (GHz)	Inner Width	Inner Height	Common Freq. Band
BJ70	WR137	5.38～8.17	34.85	15.8	C/X Band
BJ84	WR112	6.57～9.99	28.5	12.62	X Band
BJ100	WR90	8.20～12.50	22.86	10.16	X Band
BJ120	WR75	9.84～15.00	19.05	9.525	Ku low freq.
BJ140	WR62	11.90～18.00	15.8	7.9	Ku Band
BJ180	WR51	15.80～24.00	12.95	6.48	Ku high/K low freq.
BJ220	WR42	18.00～26.50	10.67	5.33	K Band
BJ260	WR34	21.70～33.00	8.636	4.318	Ka low freq.
BJ320	WR28	26.50～40.00	7.112	3.556	Ka
BJ400	WR22	33.00～50.00	5.69	2.845	Ka High freq. / U
BJ500	WR19	39.20～59.60	4.775	2.388	U/V Band
BJ620	WR15	50.00～75.00	3.759	1.88	V Band
BJ740	WR12	60.50～91.90	3.099	1.549	E Band
BJ900	WR10	75.00～110.0	2.54	1.27	W Band
BJ1200	WR08	92.20～140.0	2.032	1.016	F Band
