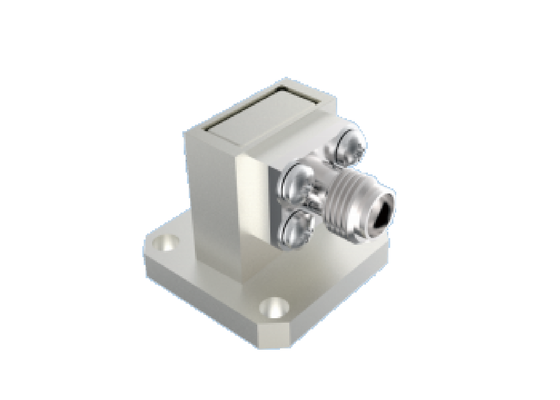

BJ320/WR 28 Waveguide to 2.92mm K Type Adapter 26.4GHz~38GHz Right Angle Aerospace RF Connectors Using for Ka Band

Elite Electronics produces aerospace-grade waveguide to coaxial adapter, available in two structural types: End launch and right angle type. The frequency ranges from 5.3 GHz to 145 GHz. The rectangular waveguide ports include: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42),BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12),  BJ900(WR10), BJ 1200(WR8) The coaxial interface cover SMA, 2.92 mm, 2.4 mm and 1.85 mm, 1.0mm, 0.8mm series. Each waveguide port supports the full waveguide bandwidth. Featuring reliable structure, compact outline dimensions, excellent electrical performance with good consistency, and light weight (≤20 g), these products are widely used in various types of spacecraft.

2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. 2.92mm connectors we have cable connectors, flange mount connectors, bulkhead connectors. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.
