Nama Produk: Pandu gelombang ke Adaptor 2.92mm Model: BTZH-P1G-3
Rentang Frekuensi: 15GHz ~ 22GHz Impedansi: 50Ω
DWV: 500V Resistensi Isolasi: ≥5000MΩ
VSWR: ≤1.25 Kerugian Penyisipan: ≤0,25dB
Suhu: -55℃ ~125℃
Menyoroti:

50Ω WR 51 waveguide adapter

,

Ku/K band right angle connector

,

low VSWR aerospace RF adapter

50Ω 15GHz~22GHz WR 51/BJ180 Waveguide to 2.92mm Adapter Ku/K Band Right Angle Structure Aerospace RF Connectors with Low VSWR


Elite Electronics produces aerospace-grade waveguide to coaxial adapter, available in two structural types: End launch and right angle type. The frequency ranges from 5.3 GHz to 145 GHz. The rectangular waveguide ports include: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12),  BJ900(WR10), BJ 1200(WR8)



The coaxial interface cover SMA, 2.92 mm, 2.4 mm and 1.85 mm, 1.0mm, 0.8mm series. Each waveguide port supports the full waveguide bandwidth. Featuring reliable structure, compact outline dimensions, excellent electrical performance with good consistency, and light weight (≤20 g), these products are widely used in various types of spacecraft.



Waveguide to Coaxial Adapter Design Features
  • Compact design
  • Frequency band operation up to 145GHz
  • Rugged construction for reliability
  • Available in multiple configurations: end launch, right angle options
  • Low VSWR & low Insertion loss

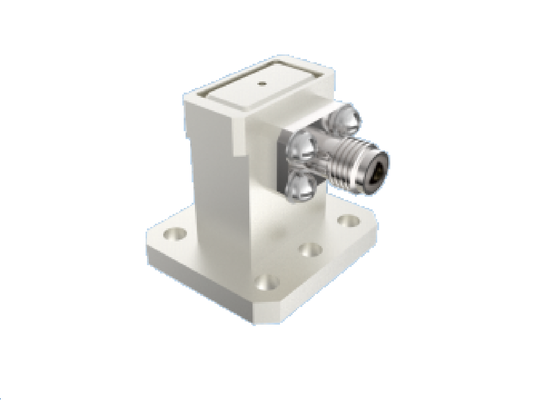

50Ω 15GHz~22GHz WR 51/BJ180 Waveguide to 2.92mm Adapter Ku/K Band Right Angle Structure Aerospace RF Connectors with Low VSWR
Model : BTZH - P1G-3
50Ω 15GHz~22GHz WR 51/BJ180 Waveguide to 2.92mm Adapter Ku/K Band Right Angle Structure Aerospace RF Connectors with Low VSWR & Low Insertion Loss 0
Note: Please contact sales freely for more model details.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω 15GHz~22GHz WR 51/BJ180 Waveguide to 2.92mm Adapter Ku/K Band Right Angle Structure Aerospace RF Connectors with Low VSWR & Low Insertion Loss 1
Packaging & Shipping
Each waveguide WR51 to 2.92mm adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω 15GHz~22GHz WR 51/BJ180 Waveguide to 2.92mm Adapter Ku/K Band Right Angle Structure Aerospace RF Connectors with Low VSWR & Low Insertion Loss 2
Related Information of Waveguide Port: (for reference only)
 BJ WR Frequency (GHz) Inner Width Inner Hight  Common Freq. Band
BJ70 WR137 5.38～8.17 34.85 15.80 C/X Band
BJ84 WR112 6.57～9.99 28.50 12.62 X Band
BJ100 WR90 8.20～12.50 22.86 10.16 X Band
BJ120 WR75 9.84～15.00 19.05 9.525 Ku low freq.
BJ140 WR62 11.90～18.00 15.80 7.90 Ku Band
BJ180 WR51 15.80～24.00 12.95 6.48 Ku high/K low freq.
BJ220 WR42 18.00～26.50 10.67 5.33 K Band
BJ260 WR34 21.70～33.00 8.636 4.318 Ka low freq.
BJ320 WR28 26.50～40.00 7.112 3.556 Ka
BJ400 WR22 33.00～50.00 5.690 2.845 Ka High freq. / U
BJ500 WR19 39.20～59.60 4.775 2.388 U/V Band
BJ620 WR15 50.00～75.00 3.759 1.880 V Band
BJ740 WR12 60.50～91.90 3.099 1.549 E Band
BJ900 WR10 75.00～110.0 2.540 1.270 W Band
BJ1200 WR08 92.20～140.0 2.032 1.016 F Band
