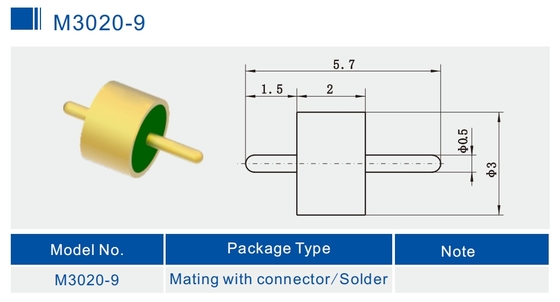

Full Radius Glass To Metal Seal Connectors RF feedthrus for Hermetic Packaging M3020-9

Full Radius Glass To Metal Seal is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Features:

-Hermetic
-Stable quality and high reliability
-Small size
-lightweight
-Gold wire bonding, soldering and mating method for choice

Application:
Wide usage range of electronics packages, electronics countermeasures, missiles, satellites, radar and other in military, aerospace, avionics, automotive and other filed. It can be used with SMA, millimeter wave products.
