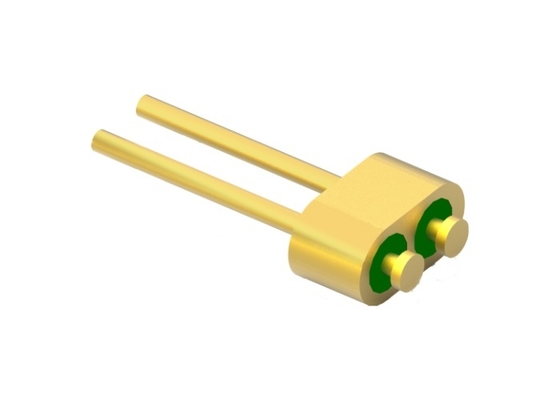

2-Pin Nail Head Glass To Metal Hermetic Seal Header With Gold Wire Bonding Surface MC-628-JH

Gambar besar : 2-Pin Nail Head Glass To Metal Hermetic Seal Header With Gold Wire Bonding Surface MC-628-JH Harga terbaik

Detail produk:

Place of Origin:	China
Nama merek:	ELT
Sertifikasi:	ROHS ISO-9001-2015
Model Number:	MC-628-JH

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	200 pcs
Harga:	negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 Weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	30,000,000 pcs per year

Kontak

Detil Deskripsi produk

Plating:	Gold Plated	Pin:	Multi-pin
Pin Number:	2 pins	Pin Material:	Kovar 4J29
Glass Material:	7052,7070, DM308	Hermecity:	<1.01325 X 10E-08 std.cc/s
Certificate:	ROHS ISO-9001-2015	Package:	Glass to metal seals
Nama merek:	ELT(Elite)	ODM:	can be customized according to your requirement
Menyoroti:	Nail Head Glass To Metal Header , Glass To Metal Hermetic Seal Header , MC-628-JH Hermetic Seal Header

2-Pin Nail Head Hermetic DC Multi-pin Header with Gold Wire Bonding Surface

Specification of MC-628-JH:

Product Name	Hermetic Nail Head Multi-pin Header
Impedance	NA
Type	2 pins
Rows	1 row
Color	Gold plated
Housing and pin material	Kovar 4J29
Glass material Glass Color	7050 or 7070 type or DM308 Green or White
Freqecncy Range	NA
VSWR	NA
Withstand Voltage	≥100V
Hermecity Leak Rate	< 1.01325 X 10^-3 Pacm³/s < 1X 10^-9 mbarl/s < 1 x 10^-9 ccHe/sec @ 1 atm
Insulation Resistance	≥2000MΩ
Operating temperature	-65℃~+260℃

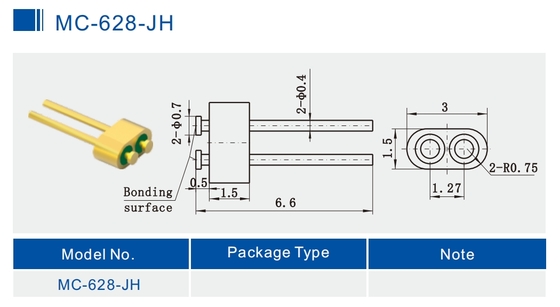

Detailed Image(mm) of MC-628-JH

Catalog-Glass-to-Metal Hermetic Seals.pdf

2-Pin Nail Head Glass To Metal Hermetic Seal Header With Gold Wire Bonding Surface MC-628-JH 0

Introduction

Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

2-Pin Nail Head Glass To Metal Hermetic Seal Header With Gold Wire Bonding Surface MC-628-JH 1

Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice

Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

Advantages:

-Military Grade with 1.27um gold plated

-Strict tolerance control

-Standard and custom design for choice.

-High cost-effective products and services

-Large stocks for standard sizes

-Fast delivery for custom products

Product List:

50Ω RF Single-pin JM Series	Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series	Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series	Soldering Mating and Bonding choice
DC Single-pin JK Series	Soldering and Bonding choice
DC Single-pin JK Standard Series	Soldering and Bonding choice
DC Single-pin JK Non-Standard Series	Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series	1-9 pins with 1-3 rows choice
Custom dimensions	Wide range

2-Pin Nail Head Glass To Metal Hermetic Seal Header With Gold Wire Bonding Surface MC-628-JH 2

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
