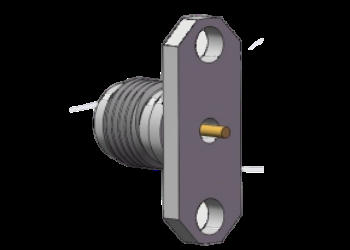

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector

Gambar besar : 2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector Harga terbaik

Detail produk:

Tempat asal:	Xi'an, Cina
Nama merek:	ELT
Sertifikasi:	ISO 9001, ISO14001
Nomor model:	K-KFD123G

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	MOQ 50Pcs
Harga:	Depending on the quantity
Kemasan rincian:	1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman:	8-13 minggu setelah menerima pembayaran
Syarat-syarat pembayaran:	T/T atau LC
Menyediakan kemampuan:	Sebagai Persyaratan

Kontak

Detil Deskripsi produk

Nama Produk:	Stainless steel 2.92mm konektor microstrip betina	Model:	SSMA-KFD13G
Rentang frekuensi:	0,04Hz-40GHz	Impedansi:	50Ω
DWV:	750V	Resistensi isolasi:	≥5000MΩ
Konduktor Pusat:	Paduan tembaga, berlapis emas	Konduktor Luar:	Baja tahan karat, pasif
Metode Gunung:	2 Hole Flange Mount	Isolator:	Ptfe
Menyoroti:	SS RF Coax Microstrip Connector , Coax Microstrip Connector , 40GHz Microstrip Connector

Product Description:

K type, also known as 2.92mm connector, is a commonly used millimeter wave connector. The frequency of use can up to 40 GHz. With air interface, it can be interchanged with SMA series and 3.5mm connectors. It has the advantages of small size, light weight, high frequency of use and reliable connection.

2.92mm (K Type) RF Coax Connectors' Interface Dimenstion:

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 0

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm Female RF Coaxial Microstrip Connectors : K-KFD123G (Unit: mm)

Regarding this series, we have some simiar model with copper alloy shell, stainless steel housing, the model with different whole length, and different length of microstrip pin, different OD of round pins to meet the clients varity needs.

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 1

Other Similar Model with Stainless Steel Shell, Passivition:

2 Hole Flange Mount Stainless Steel 2.92mm Female RF Coax Connectors with Round Contact Pin OD 0.7mm : K-KFD106G

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 2

Other Similar Model with Copper Alloy Shell Gold Plating:

2 Hole Flange Mount copper alloy 2.92mm Jack RF Coax Connectors : K-KFD4

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 3

2 Hole Flange Mount copper alloy 2.92mm Jack RF Coax Connectors : K-KFD34

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 4

2 Hole Flange Mount copper alloy 2.92mm Jack RF Coax Connectors : K-KFD146

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 5

2 Hole Flange Mount copper alloy 2.92mm Jack RF Coax Connectors : K-KFD159

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 6

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 7

Packing and Shipping:

Packaging:

The Stainless Steel 2 Hole Flange Mount 2.92mm Female RF Coaxial Connector is carefully packaged in carton to ensure its protection during transit.

2.92mm Jack 40GHz 2 Hole Flange Mount With Round Contact SS RF Coax Microstrip Connector 8

Shipping:

We ship the Stainless Steel Flange Mount 2.92mm Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
