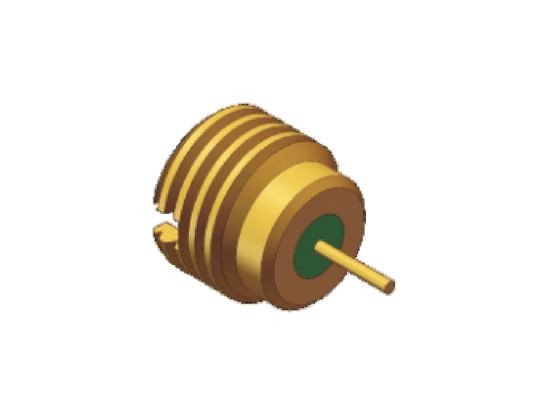

50Ω Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz

Gambar besar : 50Ω Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz Harga terbaik

Detail produk:

Tempat asal:	Xi'an, Cina
Nama merek:	ELT
Sertifikasi:	ISO9001, IS014001
Nomor model:	SSMP-JYD18
Dokumen:	SSMP-Male Bulkhead and Scre...ic.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	MOQ 200 buah
Harga:	The price depend on the quantity
Kemasan rincian:	100 pcs/tas atau botol plastik; 100 pcs/karton sebagai persyaratan
Waktu pengiriman:	8-12 minggu untuk produksi baru
Syarat-syarat pembayaran:	T/T,L/C,D/P
Menyediakan kemampuan:	Sebagai Persyaratan

Kontak

Detil Deskripsi produk

Nama Produk:	SMPM Konektor Bulkhead Pria	model:	SSMP-JYD18
Impedansi:	50Ω	Formulir Antarmuka:	Penahanan Penuh
Nilai Tegangan:	170V	Rentang Frekuensi:	0.3MHz-40GHz
Resistensi Isolasi:	≥5000MΩ	DWV:	500V
Konduktor Pusat:	Paduan Kaval, Pelapisan Emas	Konduktor Luar:	Paduan Kaval, Pelapisan Emas
Menyoroti:	50Ω SMPM RF coaxial connector , hermetic glass dielectric SMPM connector , SMPM bulkhead RF connector 40GHz

50Ω Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz

SMPM Coaxial Connector – Miniature High-Shield RF Interconnect for High-Speed Data Transmission. Our SMPM coaxial connector is specially designed to meet compact small-form-factor packaging demands, delivering fully shielded RF interconnect solutions for high data rate, high-frequency signal applications.Boasting outstanding shielding performance, this miniature SMPM connector effectively reduces electromagnetic signal interference and loss, maintaining stable, optimal high-speed signal transmission performance. Matched with an SMPM female to female adapter, the SMPM RF connector forms a reliable board-to-board connection assembly. It can automatically offset radial and axial misalignment errors generated during PCB installation, greatly improving assembly tolerance and connection stability for compact electronic modules.

Ideal for aerospace, microwave test equipment, high-speed communication, mini radar and miniaturized wireless distribution systems.

Key Features

Physical Separation: Isolates spaces at both connector ends (e.g., device interior/exterior or separate cavities) to prevent electromagnetic interference and environmental effects (dustproof, waterproof)
Stable Fixation: Secures connector position against vibration or insertion/removal forces, maintaining consistent signal transmission

Product Specifications

Item	Value
Product Name	SMPM Male Bulkhead Connector
Model	SSMP-JYD18
Frequency Range	0.3MHz-40GHz
Impedance	50Ω
Rated Voltage	170V
DWV	500V
Insulation Resistance	≥5000MΩ
Center Conductor	Kaval Alloy, Gold Plating
Outer Conductor	Kaval Alloy, Gold Plating
Insulation Dielectric	Glass

Product Outline Dimensions (Screw M4 x 0.5-6g, Unit: mm)

Note 1: Hermetic | Note 2: Engagement Depth 1.4 | Note 3: Engagement Depth 2.11

Alternative Screw Model (M3.5 X 0.35-6g)

Our threaded locking series connectors feature multiple positioning platforms for secure board mounting and locking with compatible products.

Note 1: Hermetic | Note 2: Bonding Surface | Note 3: Engagement Depth 2.11

Applications

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Elite Electronics manufactures SMPM connectors using premium materials and rigorous quality control processes to ensure exceptional durability and reliability in extreme environments.

Packaging & Shipping

Each Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
