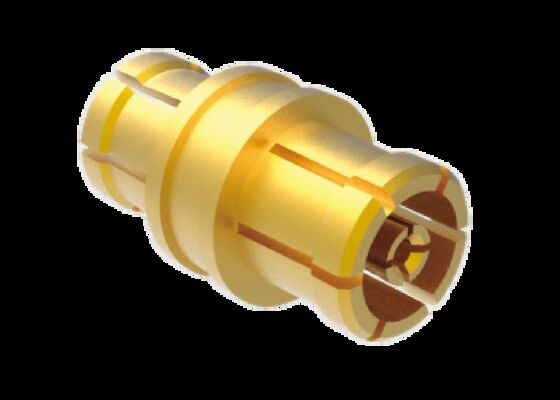

50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss

50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss

Gambar besar :  50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: SMPM-KK31
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Adaptor SMPM Perempuan ke Perempuan Model: SSMP-KK31
Rentang Frekuensi: 0.3MHz-40GHz Impedansi: 50Ω
DWV: 500V Resistensi Isolasi: ≥5000MΩ
Konduktor Pusat: ≤8mΩ; Paduan Tembaga, Berlapis Emas Konduktor Luar: ≤3,5mΩ; Paduan Tembaga, Berlapis Emas
Isolator: PTFE3, PTFE VSWR: ≤1.3
Kerugian Penyisipan: ≤0,3dB Suhu: -55℃ ~125℃
Daya tahan: 500 siklus
Menyoroti:

40GHz SMPM RF connector

,

50Ω aerospace RF adapter

,

low insertion loss SMPM jack

50Ω 18GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss



The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.



SMPM Design Features
  • Compact design
  • Frequency band operation up to 40GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead,  PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of SMPM RF Coaxial Connectors
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss 0

50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
Model No.:  SMPM-KK31 , with SMPM Adapter Length =5
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss 1
Other different length SMPM Jack to Jack Adapters:
Model No. Length of SMP Jack to Jack Adapters  OD of SMPM
SSMP-KK31 5mm 2.75mm
SSMP-KK41 4mm 2.6mm
SSMP-KK170 4.55mm 2.75mm
SSMP-KK171 3.8mm 2.6mm
SSMP-KK204 6mm 2.79mm
SSMP-KK216 6.9mm 3.5mm
SSMP-KK326 11.7mm 2.5mm
Note: Please contact sales freely for detailed datasheet.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss 2
Packaging & Shipping
Each SMPM adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω 40GHz SMPM Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss 3
