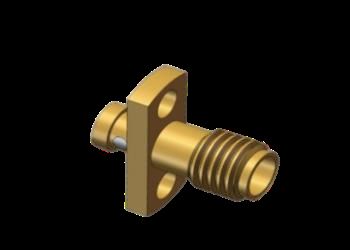

18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable

18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable

Gambar besar :  18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: SSMA-KF506
Dokumen: Catalog SSMA Mating Flexibl...25.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Saham, MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Flensa konektor kabel wanita SSMA Model: SSMA-KF506
Rentang frekuensi: 0.3MHz-18GHz Impedansi: 50Ω
DWV: 750V Resistensi isolasi: ≥5000MΩ
Konduktor Pusat: Paduan tembaga, berlapis emas Konduktor Luar: Paduan tembaga, berlapis emas
Kabel kawin: Kabel CXN3506 Isolator: Ptfe
Sampel: dalam stok
Menyoroti:

18GHz SSMA RF connector

,

SSMA female flange mount connector

,

RF coaxial connector for CXN3506 cable

18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable 0
Mini SMA Jack RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-KF506
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable 1
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable 2
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable 3
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
18GHz 50Ω SSMA Female Mini SMA Jack 2 Hole Flange Mount RF Coaxial Cable Connector Mating for CXN3506 Flexible Cable 4
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
