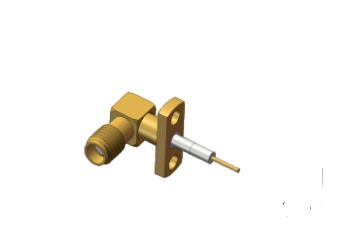

Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω

Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω

Gambar besar :  Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: SSMA-KWFD8
Dokumen: Catalog SSMA-KWFD Series fe...25.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Saham, MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Sudut kanan ssma betina 2 lubang flange mount connector Model: SSMA-KWFD8
Rentang frekuensi: 0.3MHz-18GHz Impedansi: 50Ω
DWV: 750V Resistensi isolasi: ≥5000MΩ
Konduktor Pusat: Paduan tembaga, berlapis emas Konduktor Luar: Paduan tembaga, berlapis emas
Lengan sekrup: Stainless steel, Passivition Metode Gunung: 2 Hole Flange Mount
Isolator: Ptfe Sampel: dalam stok
Menyoroti:

Copper Alloy SSMA RF Connector

,

Right Angle SMA Female Connector

,

Flange Mount RF Coaxial Connector

50Ω Copper Alloy 2 Hole Flange Mount Right Angle SSMA Female/Jack RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω 0
2 Hole Flange Mount Right Angle SSMA Female Dimenstion:
Model No.: SSMA-KWFD8
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω 1
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω 2
Packaging and Shipping
Each 2 Hole Flange Mount Right Angle SSMA Jack RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω 3
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn

Label:

Konektor RF SSMA wanita 18GHz,

Konektor dudukan flens 50 ohm,

Konektor RF SSMA dengan garansi
