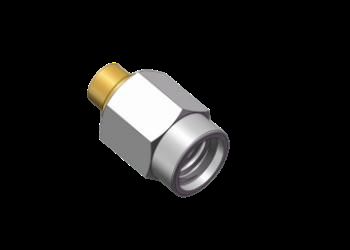

Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable
Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

Gambar besar :  Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: SSMA-JB2G
Dokumen: Catalog SSMA-mating .086 Ca...ic.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Saham, MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Konektor kabel jantan lurus SSMA Model: SSMA-JB2G
Rentang frekuensi: 0.3MHz-18GHz Impedansi: 50Ω
DWV: 750V Resistensi isolasi: ≥5000MΩ
Konduktor Pusat: Paduan tembaga, berlapis emas Kabel kawin: .086 kabel
Konduktor Luar: Baja tahan karat, pasif Isolator: Ptfe
Sampel: dalam stok
Menyoroti:

Stainless Steel SSMA RF Connector

,

18GHz SMA Plug Connector

,

50Ω SMA Coaxial Cable Connector

50Ω Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz Mating for .086 Cable
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 0
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-JB2G
Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 1
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 2
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Stainless Steel SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 3
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
