Rumah ProdukSSMA RF Connector

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz

Semua produk
Konektor RF SMA (190)
Konektor RF SMP (209)
Konektor RF SMPM (85)
Konektor RF 1.0mm (23)
Konektor RF 1.85mm (11)
Konektor RF 2,4mm (39)
2.92mm Konektor RF (113)
Konektor RF 3.5mm (13)
SSMA RF Connector (20)
Antara Adaptor RF Seri (84)
Konektor RF ruang angkasa (14)
Komponen Panduan Gelombang Pesawat Udara (6)
Perakitan Kabel RF (64)
Pemutusan Beban RF (29)
Waveguide Ke Adaptor Koaksial (33)
Konektor Segel Kaca Ke Logam (123)
Konektor Seri J30J (30)
Sendi Putar Microwave (6)
Konektor Terpadu (22)
Konektor Adaptor Koaksial RF (240)
I 'm Online Chat Now
Sertifikasi
Cina Xi'an Elite Electronic Industry Co., Ltd. Sertifikasi
Cina Xi'an Elite Electronic Industry Co., Ltd. Sertifikasi
Produk persis seperti yang diharapkan dan berkualitas tinggi. Layanan sangat baik. Pasti akan memesan dari lagi.

—— Gregory, AS

Memahami persyaratan saya dan mencari bagian yang tepat.

—— Ian, Selandia Baru

Sangat menyenangkan berurusan dengan Anda dan terima kasih atas bantuan dan saran Anda. Berharap akan ada lebih banyak tembaga dalam waktu dekat.

—— Terence, Singapura

Konektor SMP berkualitas tinggi, tingkat kebocoran dapat mencapai 1 * 10 ^ -9 mbar * l / s. Banyak dengan harga ekonomi seperti itu.

—— Jonh, Amerika Serikat

Penjual Profesional

—— Abdu, Arab Saudi

Aku punya konektor frekuensi tinggi Anda dan mereka benar-benar baik!

—— Jacky, Korea

Kami menguji kabel dan mereka semua bekerja seperti yang diharapkan.

—— Josh, Inggris

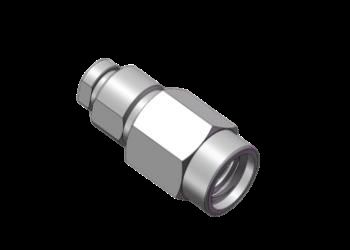

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz

Gambar besar :  50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: RPSSMA-K506G
Dokumen: Catalog SSMA Mating Flexibl...25.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Saham, MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: Reverse Polarity SSMA Konektor Kabel Wanita Model: RPSSMA-K506G
Rentang frekuensi: 0.3MHz-18GHz Impedansi: 50Ω
DWV: 750V Resistensi isolasi: ≥5000MΩ
Konduktor Pusat: Paduan tembaga, berlapis emas Konduktor Luar: Baja Tahan Karat, Pasivasi
Kabel kawin: Kabel CXN3506 Isolator: Ptfe
Sampel: dalam stok
Menyoroti:

50Ω SSMA female RF connector

,

reverse polarity SMA jack connector

,

18GHz flexible coaxial cable connector

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz 0
Reverse Polarity Straight SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz 1
Reverse Polarity RA SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz 2
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz 3
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz 4
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn

Label:

Konektor RF SSMA wanita 18GHz,

Konektor dudukan flens 50 ohm,

Konektor RF SSMA dengan garansi
