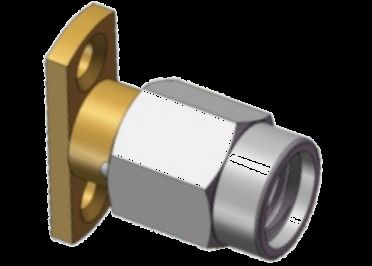

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz

Gambar besar : SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz Harga terbaik

Detail produk:

Tempat asal:	Xi'an, Cina
Nama merek:	ELT
Sertifikasi:	ISO9001, IS014001
Nomor model:	SSMA-JFD11

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	Moq 50 buah
Harga:	The price depend on the quantity
Kemasan rincian:	1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman:	8-12 minggu untuk produksi baru
Syarat-syarat pembayaran:	T/t, l/c, d/p
Menyediakan kemampuan:	Sebagai Persyaratan

Kontak

Detil Deskripsi produk

Nama Produk:	Konektor microstrip pria lurus SSMA	Model:	SSMA-JFD11
Rentang frekuensi:	0.3MHz-18GHz	Impedansi:	50Ω
Tegangan Dinilai:	250v	DWV:	750V
Resistensi isolasi:	≥5000MΩ	Konduktor Pusat:	Paduan tembaga, berlapis emas
Konduktor Luar:	Paduan tembaga, berlapis emas	Metode Gunung:	2 Hole Flange Mount
Isolator:	Ptfe	Sampel:	Tersedia, tersedia
Menyoroti:	SSMA male RF connector with flange mount , Mini SMA coaxial connector up to 18GHz , 2 hole flange mount SSMA connector

Straight SSMA / Mini SMA Male RF Coaxial Connector 2 Hole Flange Mount Up to 18GHz

Product Specifications

Items	Value
Product Name	Straight SSMA Male Flange Mount Connector
Model	SSMA-JFD11
Frequency Range	0.3MHz-18GHz
Impedance	50Ω
Rated Voltage	250v
DWV	750V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Mount Method	2 Hole Flange Mount
Insulators	PTFE

Product Overview

Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.

Superior Mechanical and Electrical Performance Engineered for excellence, SSMA connectors provide superior mechanical stability and electrical performance. They are built to withstand demanding conditions, ensuring consistent and reliable signal transmission in critical applications. High Reliability in Demanding Applications With a focus on reliability, SSMA connectors are suitable for use in challenging environments. Their high durability and consistent performance make them a trusted choice for applications where failure is not an option.

Threaded Standard (10-36UNF-2) These connectors feature a threaded standard (10-36UNF-2), ensuring secure connections and ease of installation. This threading provides a reliable mating interface, reducing the risk of connection failures. Characteristic Impedance of 50Ω SSMA connectors are designed with a characteristic impedance of 50Ω, optimizing them for high-frequency applications. This impedance ensures minimal signal loss and reflection, providing clear and accurate signal transmission.

Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.Variety of Mounting Structures SSMA connectors are available in various mounting structures, including right angle flange mount, straight flange mount, right angle through hole PCB solder, straight through hole PCB solder, and bulkhead screws connect. This variety ensures compatibility with different design requirements and installation preferences.

Feature	Description
Size	Compact (70% the size of traditional SMA connectors)
Frequency Bandwidth	Wide frequency bandwidth (DC~18GHz)
Performance	Superior mechanical and electrical performance
Reliability	High reliability in demanding applications
Threaded Standard	10-36UNF-2
Impedance	50Ω
Frequency Operation	Up to 18GHz
Mounting Structures	Right angle flange, straight flange, right angle PCB solder, straight PCB solder, bulkhead screws connect

SSMA RF Coaxial Connectors Interface Dimensions

SSMA / Mini SMA RF Coaxial Connector 2 Hole Flange Mount Dimensions

Outline dimensions for the SSMA-JHD11 (Unit: mm).

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 1

Other Model SSMA Male Plug 2 Hole Flange Mount RF Coaxial Connector:

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 2

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 3

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 4

Applications

Ideal for high-precision microwave signal transmission in:

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.

Packaging & Shipping

Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz 6

Shipping: We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
