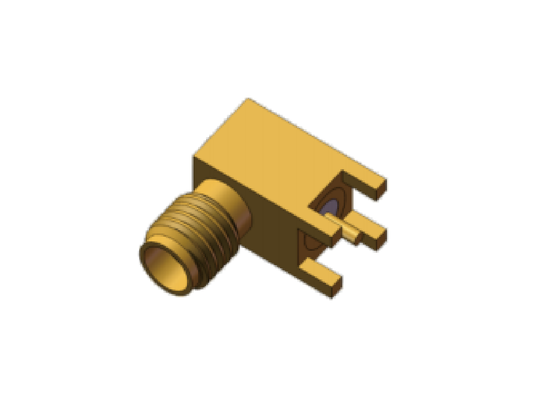

Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
|
Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Detil Deskripsi produk
| Nama Produk: | SSMA RF Connector | Model: | SSMA-KWHD41 |
|---|---|---|---|
| Rentang Frekuensi: | 0,3MHz-18GHz | Impedansi: | 50Ω |
| DWV: | 750V | Resistensi Isolasi: | ≥5000MΩ |
| Konduktor Pusat: | Kuningan berlapis emas | Konduktor Luar: | Kuningan berlapis emas |
| Kabel kawin: | Kabel CXN3506 | Isolator: | PTFE |
| Sampel: | dalam stok | ||
| Menyoroti: | Gold-coated brass SSMA RF connector,90-degree angle SMA PCB connector,18GHz 50ohm RF solder connector |
||
Brass Shell Gold Plating Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Product Introduction
The SSMA RF connector (Mini SMA) is a compact solution, 30% smaller than standard SMA connectors, ideal for high-density microwave and RF systems. Designed with a 10-36UNF-2 threaded interface and 50Ω impedance, it ensures reliable performance in space-constrained applications. SSMA RF connectors deliver excellent electrical performance and high reliability for demanding environments. Available in straight, right angle, bulkhead, and flange mount configurations. Perfect for miniaturization needs.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
RA Mini SMA Jack RF Coaxial Through Hole PCB Soldering Mount Connector:
| Technical | Materials & Finish | ||
| Impedance | 50Ω | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 500V | Outer Conductor | Copper Alloy, Gold Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PTFE |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
| Other Index | Frequency Range: 0.3MHz~18GHz | ||
Dimension of Model No.: SSMA-KWHD41
Dimension of Model No.: SSMA-KWHD
Dimension of Bulkhead RA Model: SSMA-KYWHD
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each SSMA RF Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
