Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm

Semua produk
Konektor RF SMA (202)
Konektor RF SMP (230)
Konektor RF SMPM (95)
Konektor RF 1.0mm (23)
Konektor RF 1.85mm (11)
Konektor RF 2,4mm (39)
2.92mm Konektor RF (113)
Konektor RF 3.5mm (13)
SSMA RF Connector (55)
Antara Adaptor RF Seri (85)
Konektor RF ruang angkasa (14)
Komponen Panduan Gelombang Pesawat Udara (6)
Perakitan Kabel RF (66)
Pemutusan Beban RF (29)
Waveguide Ke Adaptor Koaksial (34)
Konektor Segel Kaca Ke Logam (123)
Konektor Seri J30J (39)
Sendi Putar Microwave (6)
Konektor Terpadu (22)
Konektor Adaptor Koaksial RF (249)
I 'm Online Chat Now
Sertifikasi
Cina Xi'an Elite Electronics Co., Ltd. Sertifikasi
Cina Xi'an Elite Electronics Co., Ltd. Sertifikasi
Produk persis seperti yang diharapkan dan berkualitas tinggi. Layanan sangat baik. Pasti akan memesan dari lagi.

—— Gregory, AS

Memahami persyaratan saya dan mencari bagian yang tepat.

—— Ian, Selandia Baru

Sangat menyenangkan berurusan dengan Anda dan terima kasih atas bantuan dan saran Anda. Berharap akan ada lebih banyak tembaga dalam waktu dekat.

—— Terence, Singapura

Konektor SMP berkualitas tinggi, tingkat kebocoran dapat mencapai 1 * 10 ^ -9 mbar * l / s. Banyak dengan harga ekonomi seperti itu.

—— Jonh, Amerika Serikat

Penjual Profesional

—— Abdu, Arab Saudi

Aku punya konektor frekuensi tinggi Anda dan mereka benar-benar baik!

—— Jacky, Korea

Kami menguji kabel dan mereka semua bekerja seperti yang diharapkan.

—— Josh, Inggris

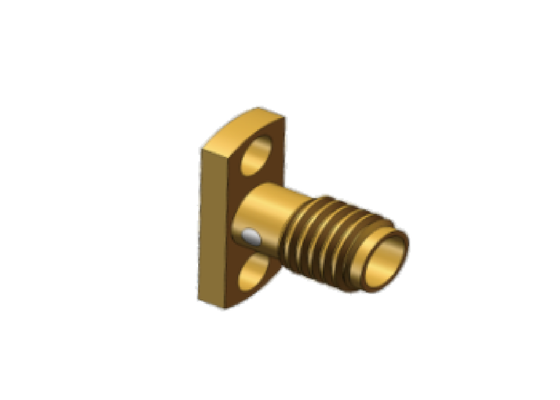

Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm

Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm

Gambar besar :  Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm Harga terbaik

Detail produk:
Tempat asal: Xi'an, Cina
Nama merek: ELT
Sertifikasi: RoHS
Nomor model: SSMA-KFD160
Dokumen: Catalog SSMA Mating Flexibl...25.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Saham, MOQ 50 untuk produksi baru
Harga: Depending on the quantity
Kemasan rincian: 1 pcs/kantong plastik; 100 pcs/karton
Waktu pengiriman: 5-7 hari kerja untuk kuantitas yang disimpan
Syarat-syarat pembayaran: T/T atau LC
Menyediakan kemampuan: Sebagai Persyaratan
Kontak
Detil Deskripsi produk
Nama Produk: SSMA RF Connector Model: SSMA-KFD160
Rentang Frekuensi: 0,3MHz-18GHz Impedansi: 50Ω
DWV: 750V Resistensi Isolasi: ≥5000MΩ
Konduktor Pusat: Finishing Kuningan Emas Konduktor Luar: Finishing Kuningan Emas
Kabel kawin: Kabel CXN3506 Isolator: PTFE
Sampel: dalam stok
Menyoroti:

Brass Gold SSMA RF Connector

,

Mini SMA Panel Mount Connector

,

18GHz 50ohm RF Connector

Brass Shell Gold Plating Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Product Introduction
The SSMA RF connector (other name Mini SMA) is a compact iteration of the standard SMA, offering a 30% size reduction without compromising performance. Engineered with a 10-36UNF-2
threaded interface and 50Ω impedance, it ensures reliable connectivity in space-constrained applications. Supporting frequencies up to 30GHz, the SSMA series delivers excellent
electrical performance, making it the ideal solution for high-density microwave and RF systems requiring miniaturization.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm 0
Mini SMA Jack RF Coaxial 2-Hole Flange Mount Connector Dimenstion:
Model No.: SSMA-KFD160
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm 1
Model L L1 L2 L3 D D1 D2 Note
SSMA-KFD105 9.7max

1.9

 4.8max 8.6 0.5 12.3max 2.6
SSMA-KFD105G 9.7max 1.9 4.8max 8.6 0.5 12.3max 2.6 Stainless Steel Shell
SSMA-KFD108G 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4 Stainless Steel Shell
SSMA-KFD109 9.7max 2 4.8max 8.6 0.32 12.3max 2.4
SSMA-KFD111G 9.7max 2 4.8max 8.3 0.32 12.3max 2.4 Stainless Steel Shell
SSMA-KFD112 16.7max 1.9 5.1max 8.3 0.4 12.3max 2.4
SSMA-KFD129G 9.7max 1.9 4.8max 10.2 0.4 14.1max 2.6 Stainless Steel Shell
SSMA-KFD131 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4
SSMA-KFD131-Y1 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4
SSMA-KFD141G 13.4max 1.9 4.8max 8.3 0.45 12.3max 2.4 Stainless Steel Shell
SSMA-KFD157G 9.7max 1.9 4.8max 8.6 0.4 12.3max 2.4 Stainless Steel Shell
SSMA-KFD159 14.4max 2.1mm 4.8max 8.3 0.5 12.3max 2.2
SSMA-KFD160 9.7max 2 4.8max 10.2 0.45 14max 2.2
SSMA-KFD161 9.7max 2 4.8max 8.3 0.45 12.3max 2.2
SSMA-KFD162 9.7max 2 4.8max 11 0.45 14.9max 2.2
SSMA-KFD171G 9.7max 1.9 5.8max 9 0.4 12.8max 2.2 Stainless Steel Shell
SSMA-KFD213 9.7max 2.1 4.8max 8.3 0.38 12.3max 2.4
SSMA-KFD221 9.7max 1.7 4.9max 8.6 0.4 12.8max 2.6
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm 2
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm 3
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
