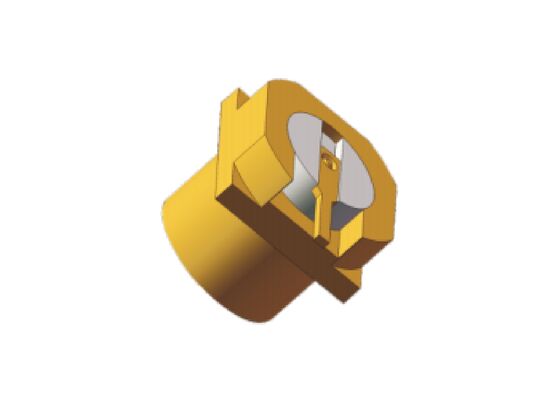

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm

Gambar besar : SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm Harga terbaik

Detail produk:

Tempat asal:	Xi'an, Cina
Nama merek:	ELT
Sertifikasi:	Rohs，ISO Certificates
Nomor model:	SMP-JHD72

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	dalam stok
Harga:	Depending on the quantity
Kemasan rincian:	1 pcs/kantong plastik; 10bag/karton
Waktu pengiriman:	6-8 minggu untuk produksi baru
Syarat-syarat pembayaran:	T/T atau LC
Menyediakan kemampuan:	Sebagai Persyaratan

Kontak

Detil Deskripsi produk

Nama Produk:	Konektor RF SMP	Kontak Pusat:	Paduan Tembaga, Berlapis Emas
Kerang:	Paduan Tembaga, Berlapis Emas	Frekuensi:	DC~18GHz
DWV:	500V	Nilai Tegangan:	170V
Ketidaktergantungan:	50Ω	Resistensi Isolasi:	5000 ohm
Kisaran Suhu:	-55℃~+125℃	Jenis kelamin:	Wanita / Jack
Pemasangan:	Pemasangan permukaan PCB	Dielektrik:	Ptfe, gelas
Sampel:	Tersedia, Tersedia
Menyoroti:	SMP straight PCB RF connector , SMP female surface mount connector , 18GHz 50 Ohm SMP connector

Product Description:

SMP Straight PCB Limited Detent /Smooth Bore Jack Female Surface Mount 50 Ohm

Engineered for demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver superior signal integrity and low VSWR performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for wrenches, significantly speeding up mating and demating cycles while ensuring a secure connection.Offering maximum design flexibility, our portfolio includes straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. We understand that every application has unique requirements, which is why we provide three distinct male plug configurations:

Full Detent: Provides maximum retention force for the most critical, vibration-prone environments

Limited Detent: Balances security with ease of maintenance for routine serviceability

Smooth Bore: Optimized for high-density arrays where space is at a premium

SMP Insertion and extraction force: Full Detent > Limited Detent > Smooth Bore

Outline Dimension of Straight SMP RF Connector Female PCB Surface Mount Connector SMP-JHD72 :

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 0

Note1: Engagement Depth 2.79mm

Other surface mount SMP Connectors as following:

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 1

Note1: Engagement Depth 2.79mm, Hermeticlly sealed with glass

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 2

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm

Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 6-10 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 3

Label:
