Waveguides to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180

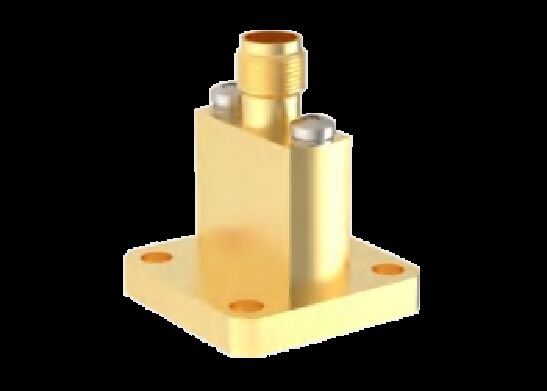

Gambar besar : Waveguides to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 Harga terbaik

Detail produk:

Tempat asal:	Xi'an Shaanxi
Nama merek:	ELT
Sertifikasi:	ISO9001, ISO14001
Nomor model:	K/BJ260-KFE5

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10pcs jika tidak ada stok
Harga:	Depend on the quantity
Kemasan rincian:	Kotak karton
Waktu pengiriman:	Dalam waktu 8-12 minggu setelah pembayaran
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	Tergantung pada kebutuhan Anda

Kontak

Detil Deskripsi produk

Ukuran pandu gelombang:	BJ260 (WR34)	Rentang frekuensi:	21,7GHz～33GHz
VSWR:	≤1.3	Kerugian penyisipan:	≤0.35db
Geometri Tubuh:	Akhiri Peluncuran	Kustomisasi:	Tersedia
Menyoroti:	WR90 waveguide to coaxial adapter , WR15 waveguide port adapter , WRD750 waveguide coaxial converter

Product Introduction

Elite Electronic designs & manufactures waveguide-to-coaxial adapters with a frequency range of 5.4GHz to 110GHz. Boasting high reliability, compact size, and outstanding performance, these adapters are widely utilized in microwave measurement systems and millimeter-wave equipment,typically utilized in radar system designs for their high-power handling capabilities, in antenna feed networks for low loss and phase precision, and in test laboratories.

Waveguide ports are available in standard rectangular and double-ridged configurations, with custom non-standard waveguide ports also offered to meet specific user requirements. The coaxial end features a comprehensive range of connection interfaces, including N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm, 0.8mm and microstrip types. Structurally, the waveguide-to-coaxial adapters are categorized into two types: end-launch and right-angle. Notably, the right-angle model can also be configured for high-power applications.

Waveguide Rectangular short as WR with the accompanying number indicating the waveguide’s inner width in hundredths of an inch. Our product range includes waveguides rectangular according to standard models such as WR-90,WR-75, WR-60, WR51, WR-42, WR-34, WR-28, WR-22, WR-19, WR-15, WR-12, WR-10, WRD750, WRD650, WRD500, WRD180 . We also can custom according to the drawing.

Outline Drawing

WR34 to K 2.92mm Female End Lauch Waveguide to Coaxial Adapter, 21.7~33GHz

WR34 to K 2.92mm Female Right Angle Waveguide to Coaxial Adapter, 21.7~33GHz

Cross-references of Waveguide Standards -WR Series & BJ Series

Chinese Standard	International Standard	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR19	39.2~59.6
BJ620	WR15	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112
