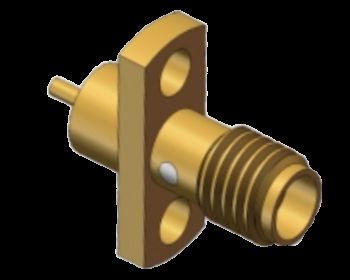

50 Ohm Flange Mount SSMA / Mini SMA Female RF Coax Connector Up to 18GHz
|
|
Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Detil Deskripsi produk
| Nama Produk: | Konektor microstrip betina SSMA | Model: | SSMA-KFD2 |
|---|---|---|---|
| Rentang frekuensi: | 0.3MHz-18GHz | Impedansi: | 50Ω |
| Tegangan Dinilai: | 250V | DWV: | 750V |
| Resistensi isolasi: | ≥5000MΩ | Konduktor Pusat: | Paduan tembaga, berlapis emas |
| Konduktor Luar: | Paduan tembaga, berlapis emas | Metode Gunung: | 2 Hole Flange Mount |
| Isolator: | Ptfe | Sampel: | Tersedia, tersedia |
| Menyoroti: | 50 Ohm SSMA RF Connector,Mini SMA Female RF Connector,SSMA RF Coax Connector |
||
Flange Mount SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | SSMA Female Microstrip Connector |
| Model | SSMA-KFD2 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 2 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These high-performance connectors feature:
- Compact size with wide frequency band capability
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Ideal for high-precision microwave signal transmission, SSMA connectors are extensively used in microwave communication, measurement equipment, aerospace, radar, and electronics fields.
We have the structures such as crimp cable connectors, solder cable connectors, clamp cable connectors, 2 hole flange mount connectors, 4 hole flange mount connectors, 4 leg through hole PCB solder connectors, bulkhead connectors, in series SSMA adapers, between series SSMA adapers.
Interface Dimensions
2 Hole Flange Mount Dimensions: SSMA-KFD2
Outline dimension of 2 Hole Flange Mount Copper Alloy SSMA Female RF Coaxial Microstrip Connectors (Unit: mm)
Available Variations
We offer similar models with:
- Copper alloy or stainless steel housing
- Different overall lengths
- Various insulation/metal convex surface lengths
- Different pin lengths and diameters (0.88mm, 0.6mm, 0.5mm, 0.3mm, etc.)
Other Similar Models or more Models, please check our catalog. For each model on our catalog, some we have in stock, some there are no stock, but most of them we can arrange the production as soon as possible.
Applications
Xi'an Elite Electronic is a leading manufacturer of systematic interconnection solutions serving:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Our high-quality products use the finest materials and strict processes to ensure durability and reliability in harsh environments.
Packaging & Shipping
Packaging: Each Flange Mount SSMA RF Coaxial Connector is carefully packaged in protective cartons to ensure safe transit.
Shipping: We use reliable courier services with tracking numbers provided for all shipments to ensure prompt and secure delivery.
